AF系列
Model: AF Series AF042-AF060-AF090-AF115-AF140-AF180-AF220 Features: Double support structure helical gear transmission, strong load-bearing capacity, return clearance ≤ 3arcmin, small size, compact structure, output end face connection, easy installation. Application areas: Mainly used in industries such as spring machinery, laser cutting, and robot seventh axis. Dimensions: 42mm to 220mm
Category：
Keywords：
sales@punosi.com
Description
Technical Parameter
Dimensions: 42mm to 220mm
Reduction ratio: 3-100
Transmission torque: 5Nm -2250Nm
Precision side clearance: ≤ 3arcmin
Installation method: Any
Product Features
1. Silent - Use helical gears to achieve smooth and quiet operation
2. High precision - backlash less than 3 arc minutes, precise positioning
3. High rigidity, high torque - using integral ball bearings greatly improves rigidity and torque
4. Flange and shaft sleeve method - can be installed on any motor
5. No lubricating grease leakage - using high viscosity and difficult to separate lubricating grease to effectively prevent grease leakage
6. Easy maintenance - no need to replace lubricating grease during the product's lifespan
Wholesale Price
|
Model |
AF042 |
AF060 |
AF090 |
AF115 |
AF140 |
AF180 |
AF220 |
|
First speed ratio |
800 |
800 |
1000 |
1600 |
2900 |
5000 |
9500 |
| Second speed ratio |
1000 |
1000 |
1500 |
2400 |
3750 |
8400 |
14250 |
|
Stock |
199 |
299 |
299 |
199 |
99 |
59 |
29 |

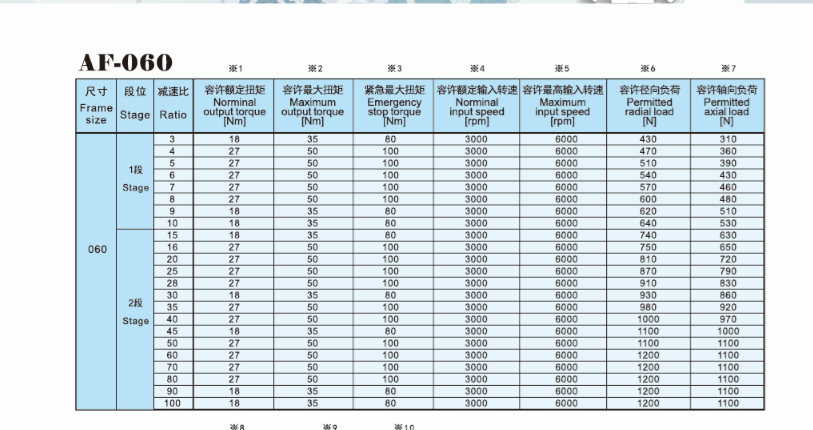

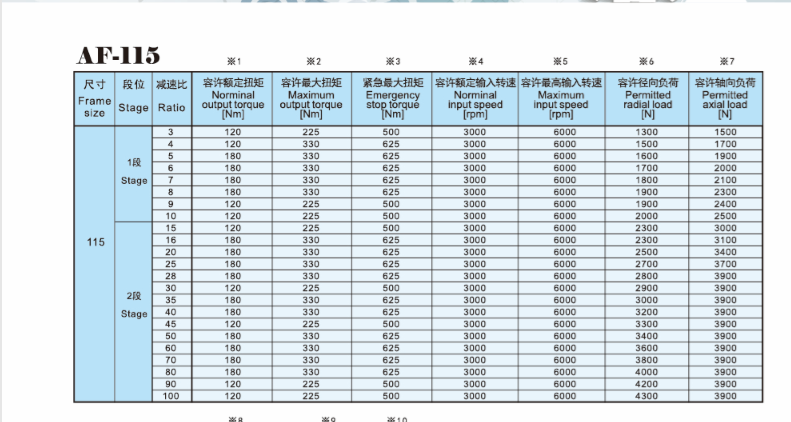

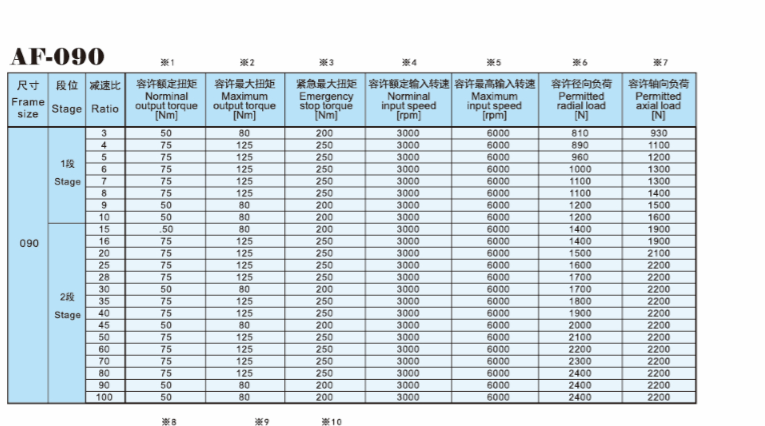

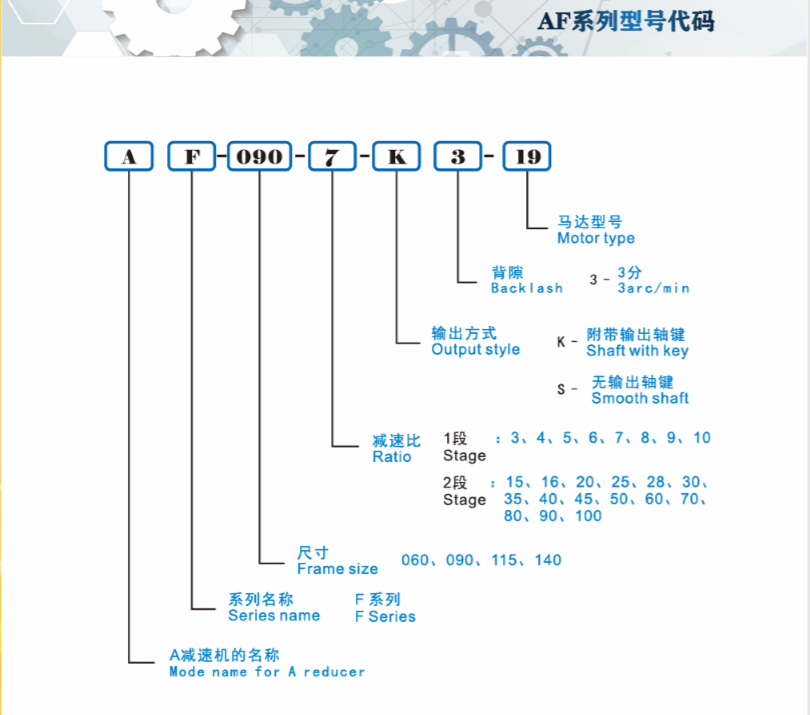

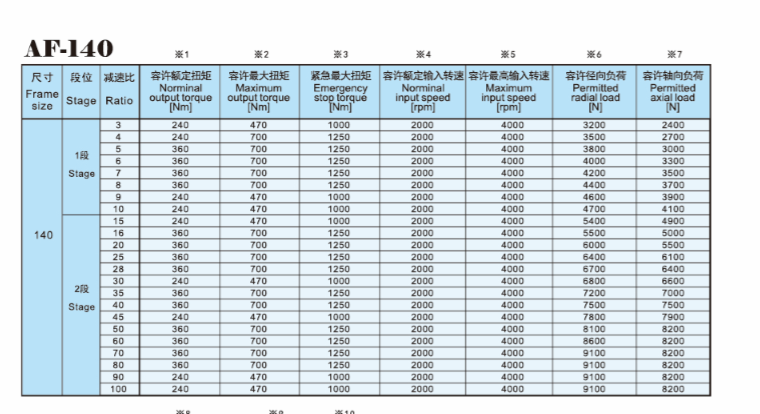

Selection and model description (screenshot of sample brochure information below)
Insert the content of the upper half P of sample books 50, 51, 52, 53, and 54P, with the following layout (please contact online customer service if you have any questions).
