Semi-Closed 7th axis track
● Logistics and transportation system ● Flexible production line ● Automobile production line ● Truss robot and joint robot mobile platform ● Loading and unloading
Category：
Keywords：
Semi Closed Ground Rail
robot
installation
robot linear motion system
Robot track system
Description
Technical Parameter
|
The name of the project |
Parameter |
|
load |
According to the actual needs of customers |
|
Rated speed |
1m/s |
|
Repeatability accuracy |
±0.05mm |
|
Installation: |
The footboard is adjusted horizontally |
|
Ground rail body |
Seventh-axis customization |
|
Linear guides |
7th axis linear guide |
|
Rack and pinion |
Seventh-axis rack and pinion |
|
b-chains® |
Seventh-axis high-speed flexible tank chain |
|
Reducer |
Seventh-axis precision planetary reducer |

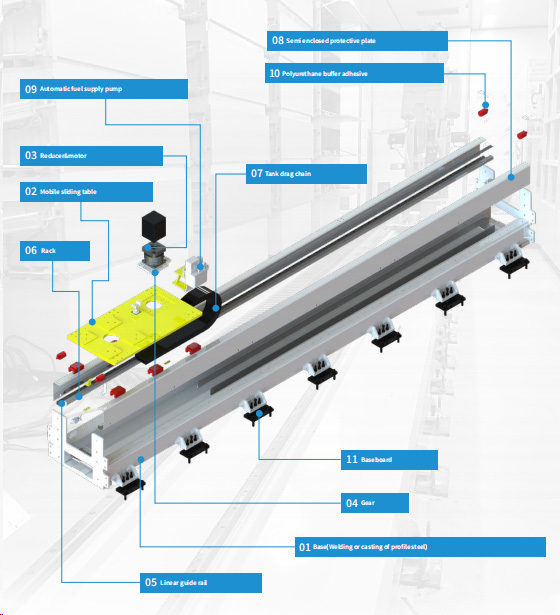

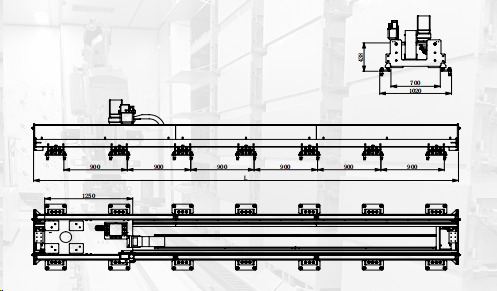

Structural Diagram
Product Introduction:
① Customized travel: The seventh axis can be extended according to customer needs;
② Flexible installation and high accuracy: The seventh axis can be installed on the ground using adjustable anchor bolts, which allows for faster installation and ensures accuracy on uneven surfaces and other spaces such as circuits and pipelines that are not conducive to installation;
③ High safety: The seventh axis is equipped with a limit switch and a mechanical safety limit mechanism is added to prevent derailment outside the joint robot, ensuring safe and reliable operation of the robot;
④ Protection: The seventh axis adopts a semi enclosed drag chain with built-in sheet metal protection.
Custom Integration with Robot Brands – This Semi‑Closed 7th axis track seamlessly integrates with major industrial robot brands such as KUKA, ABB, FANUC, and others, expanding robot workspace and enhancing automation flexibility in diverse production environments.
Enhanced Safety and Durability – Equipped with high‑precision limit switches and a mechanical safety limit mechanism, plus a semi‑closed drag chain with built‑in metal protection, the track ensures safe operation, prevents derailment, and offers improved resistance to dust and impact.
Application Scenarios:
logistics transmission systems, flexible production lines, automotive production lines, truss robots and articulated robot mobile platforms, loading and unloading materials

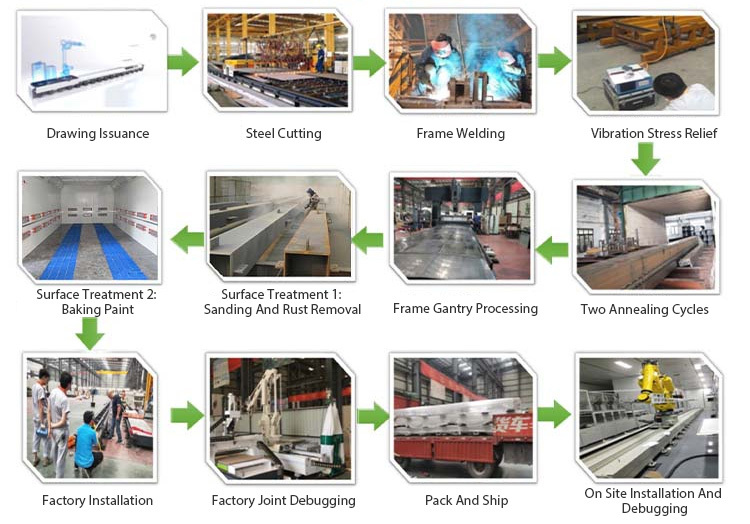

Product Processing Process Diagram:
Keywords: Semi-Closed 7th axis track
