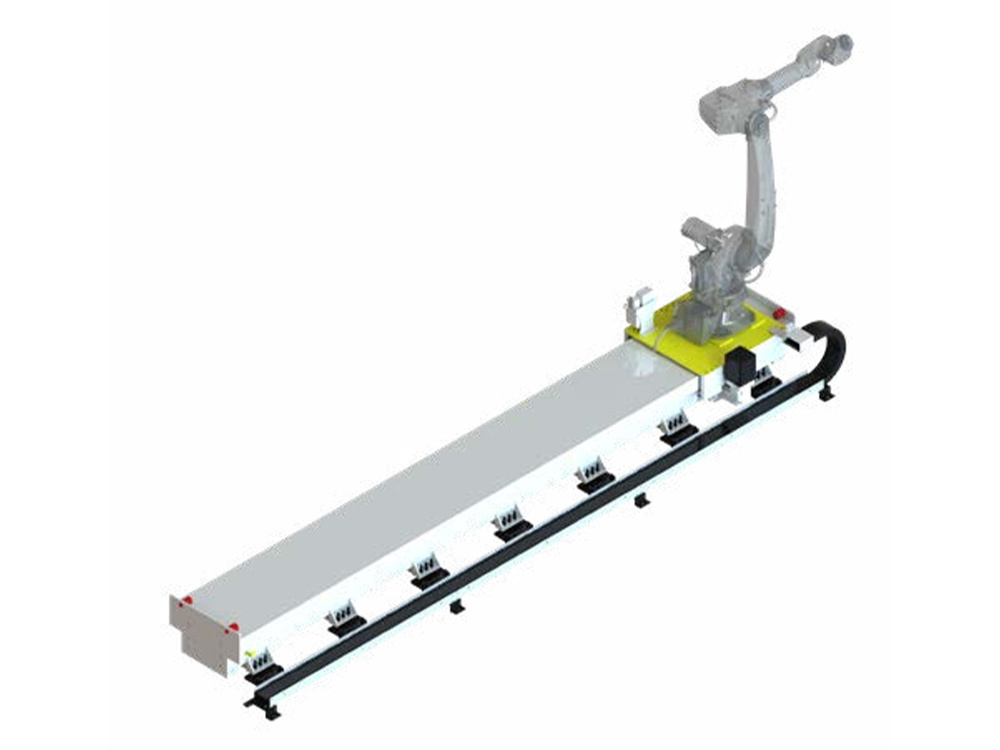

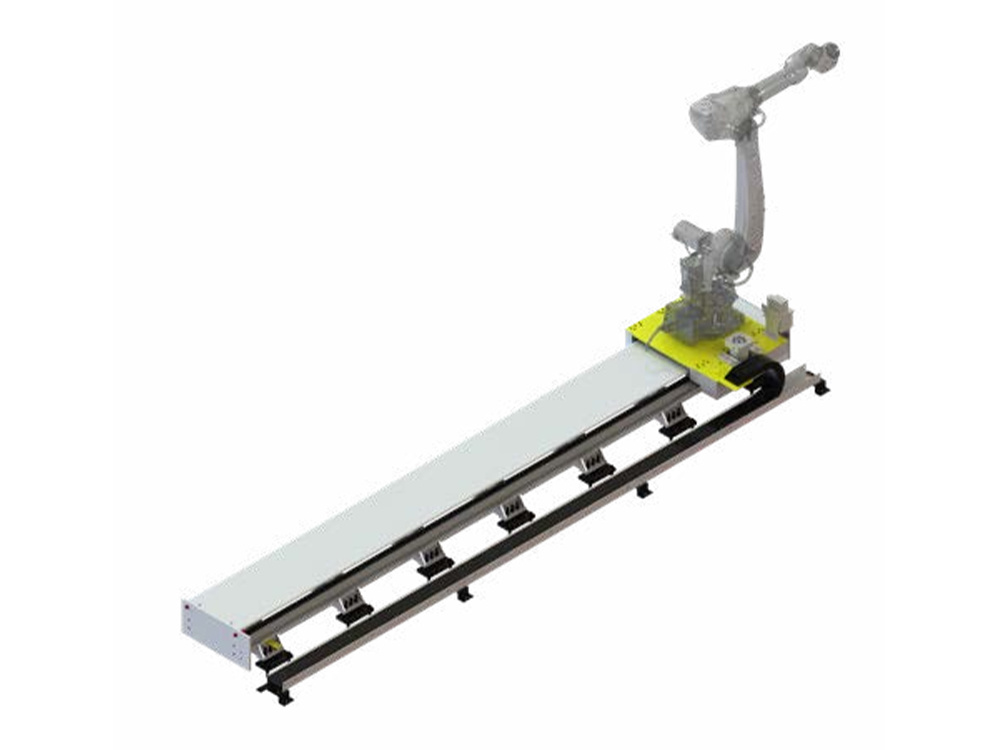

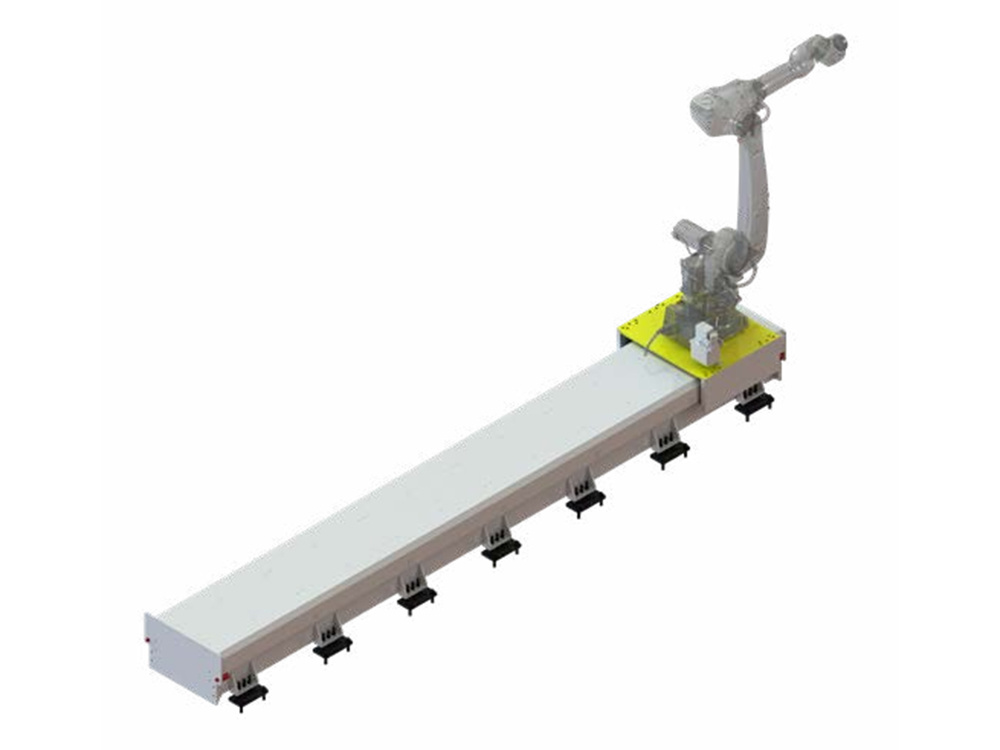

Organ-Covered 7th axis track

● Logistics and transportation system ● Flexible production line ● Automobile production line ● Truss robot and joint robot mobile platform ● Loading and unloading

Category：

Organ-Covered 7th axis track

Keywords：

Anti Tread Ground Rail

robot

Floor Track for Welding Robot

E-mail：

fjx18998358207@dqzrobot.cn

Inquiry
Recommend

Description

Technical Parameter

The name of the project

Parameter

load

According to the actual needs of customers

Rated speed

1m/s

Repeatability accuracy

±0.05mm

Installation:

The footboard is adjusted horizontally

Ground rail body

Seventh-axis customization

Linear guides

7th axis linear guide

Rack and pinion

Seventh-axis rack and pinion

b-chains®

Seventh-axis high-speed flexible tank chain

Reducer

Seventh-axis precision planetary reducer



Structural Diagram



Product Introduction:

① Customized travel: The seventh axis can be extended according to customer needs;
② Flexible installation and high accuracy: The seventh axis can be installed on the ground using adjustable anchor bolts, which allows for faster installation and ensures accuracy on uneven surfaces and other spaces such as circuits and pipelines that are not conducive to installation;
③ High safety: The seventh axis is equipped with a limit switch and a mechanical safety limit mechanism is added to prevent derailment outside the joint robot, ensuring safe and reliable operation of the robot;
④ Protection: The seventh axis adopts a semi enclosed drag chain with built-in sheet metal protection.

The robot linear motion platform is designed to expand the working range of industrial robots and improve automation efficiency in various manufacturing applications. As an important extension axis for robotic systems, it enables smooth linear movement, flexible positioning, and precise operation, making it suitable for welding, handling, assembly, and other industrial processes. With customized travel distance, stable structure, and reliable safety protection, the robot linear motion platform helps manufacturers achieve higher productivity while reducing manual operation limitations. Its adaptable design allows integration into different production environments, providing a practical solution for modern intelligent manufacturing.

Application Scenarios:

logistics transmission systems, flexible production lines, automotive production lines, truss robots and articulated robot mobile platforms, loading and unloading materials



Product Processing Process Diagram:

11
